Description
The F3D is a mobile, glasses-based pupil measurement system for detecting the influence of psychoactive drugs or medications.
The device can also be used to detect fatigue in drivers.

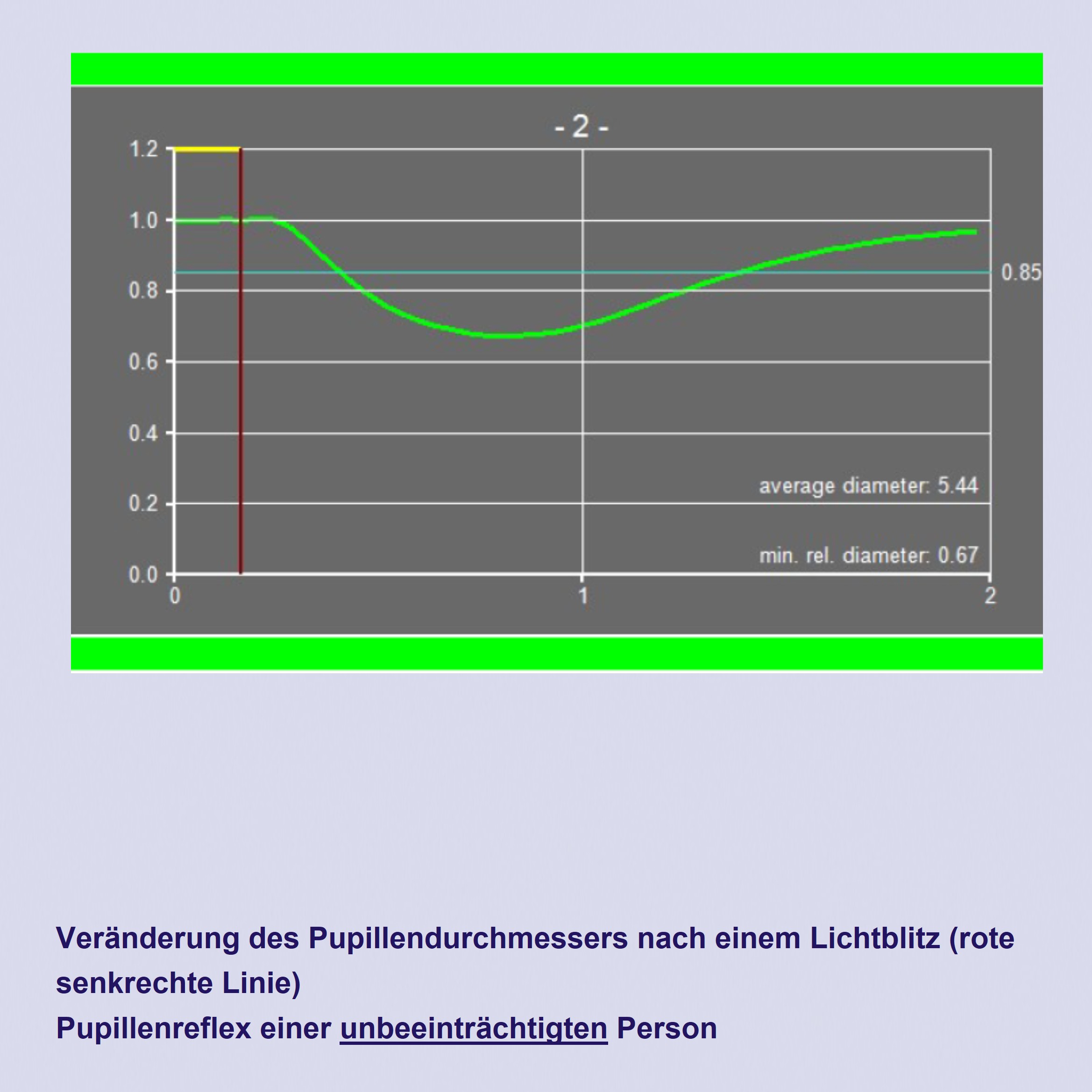

A video camera with infrared lighting integrated into the glasses observes and digitizes the pupil of the test subject. The position and diameter of the pupil are continuously determined. The pupil light reflex (PLR) of a driver is evaluated to objectively assess their capacity to drive. With the help of the F3D Cockpit software, a short flash of light is applied, which leads to a measurable pupil reaction. The reactivity of the pupil is a measure of a driver’s alertness.
Technical Data F3D
- Infrared glasses
- Weight: approx. 450 grams
- Measurement duration: 1 minute
- Measurement frequency: 25 Hz
- Resolution: 0.05 mm
- Convenient data import and export
- Integrated backup
- Stand-alone operation
- Data in ASCII format
- Windows® 11
Contents
All components of the F3D system are delivered in a transport case.
- Video glasses with camera module and darkening feature
- Horizontal and vertical elastic headband
- Connection cable
- 1 notebook with F3D Cockpit software and power supply unit
- Anti-fogging agent
- Microfiber cloth for cleaning the camera lens
- 1 cotton glove
